How to search a Data List created in ChronoForms8

Discover how to easily create a search field for your data listing created in ChronoForms8

Adding a search box feature for your data listing created in ChronoForms8 is very easy using the List Search behavior available in form fields, we explain how to use this powerful feature to make it easier for your users to find the records they need.

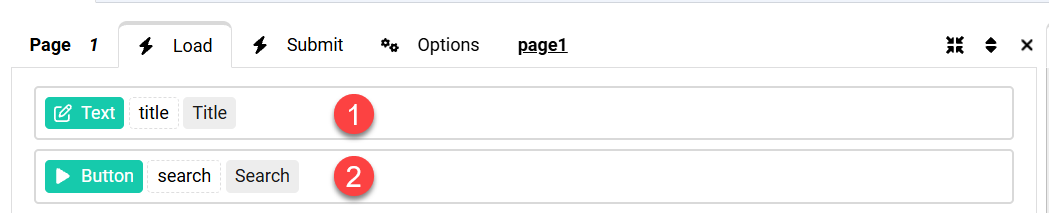

We need a Search field and a Search button so we drag a Text field and a Button from the right Views panel

How to search a Data List created in ChronoForms8 image 2

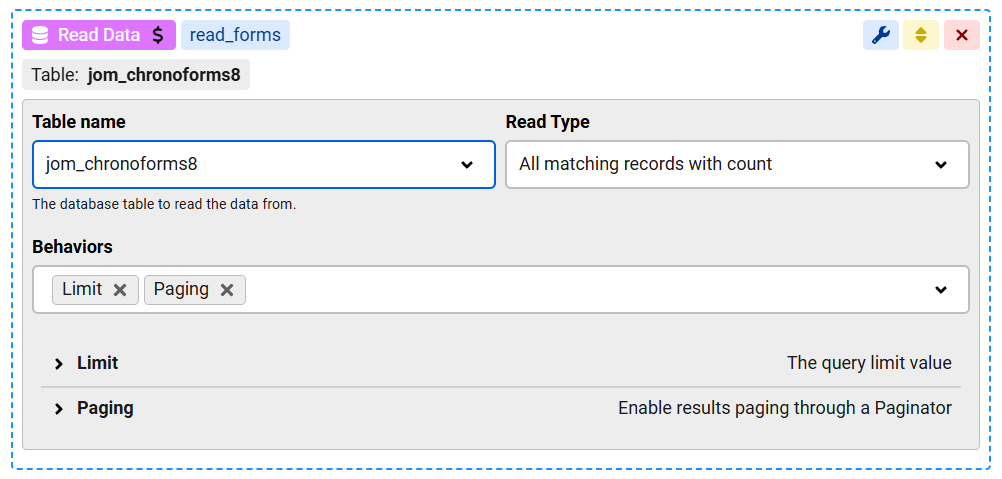

Our listing Read Data action can be as simple as the following one, we read all rows from the core ChronoForms8 database table, make sure the Limit and Paging behaviors are both enabled

How to search a Data List created in ChronoForms8 image 3

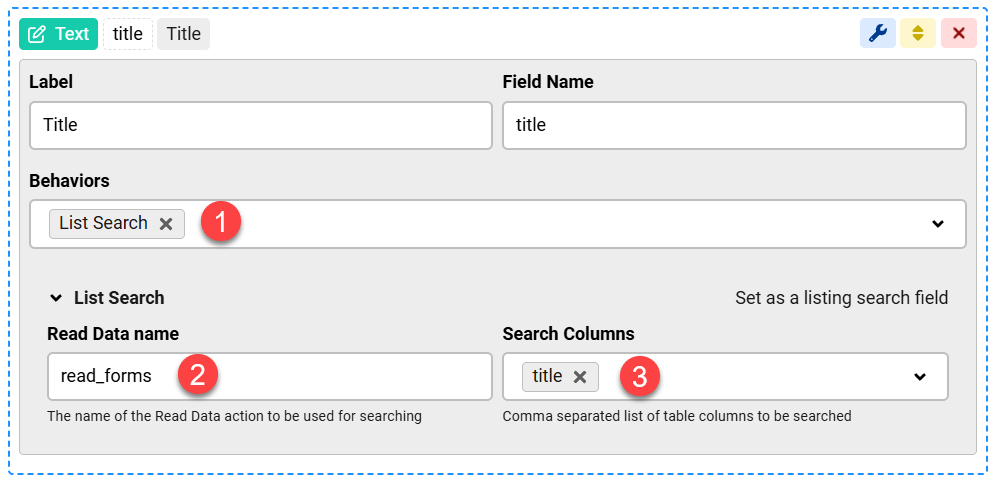

The ChronoForms8 table has a column named "title" which we want to search using the Search field we added earlier, this is how to setup the List Search behavior in the Title text field to run the search on the Read Data automatically

How to search a Data List created in ChronoForms8 image 4

As shown, the Read Data Name should match the name of the Read Data action (read_forms) and the Search Columns should have the table columns we are going to search.

Finally our table view will not be affected by any changes we need for the Search

How to search a Data List created in ChronoForms8 image 5

You can red more on how to setup the whole list in this tutorial

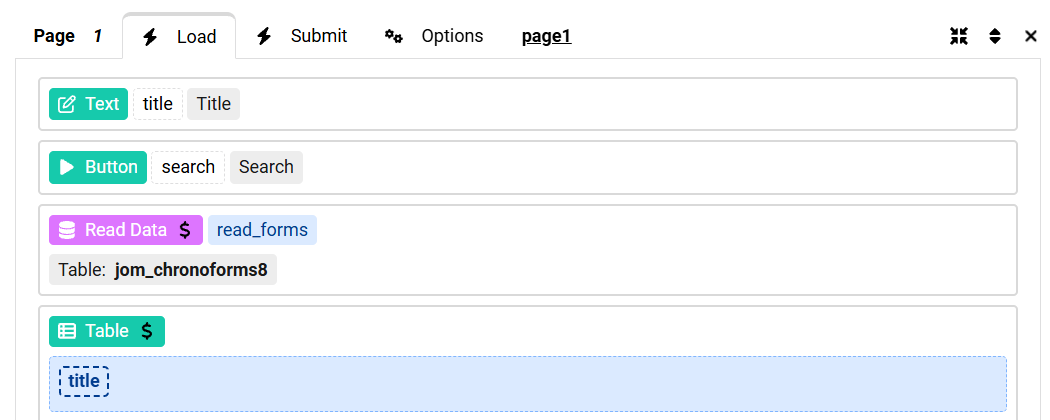

This should be the final order of items on the page, please note that the Search Text field should be above the Read Data:

How to search a Data List created in ChronoForms8 image 6

Category: ChronoForms v8
